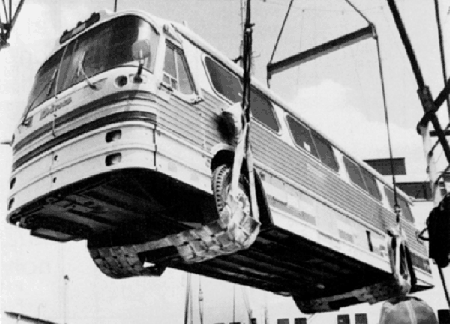

Wheel Nets – Fast loading, of most sized vehicles, is possible because of the lightweight, soft flexibility and tremendous strength made possible by using nylon of various sizes.
| Model Number | *WLL (lbs.) | Wheel Net Size (ft.) | Link Size (in.) | Weight Per Pair (lbs.) |
|---|---|---|---|---|
| WN 5.0 | 10000 | 3 x 14 | 5/8 | 31 |
| WN 12.0 | 24000 | 4 x 16 | 7/8 | 108 |
| WN 17.0 | 34000 | 4 x 16 | 1 | 125 |
| WN 21.0 | 43200 | 4 x 16 | 1-1/4 | 170 |
| WN 30.0 | 60000 | 5 x 24 | 1-3/8 | 250 |
* Work Load Limit (WLL) is based on a pair of wheel nets with one of the pair lifting up to 75% of the load and a design factor of 5:1.
