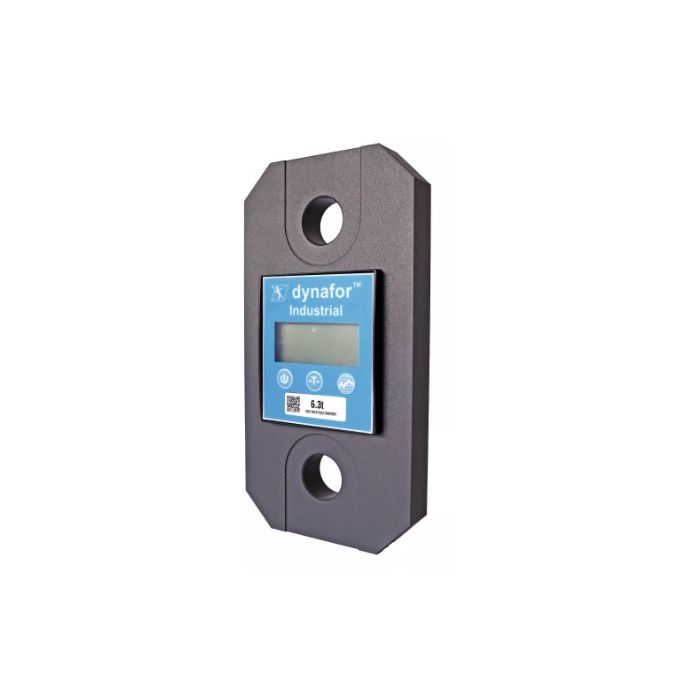

Dynafor Industrial Load Indicating Device
The Dynafor™ LLZ2 becomes the Dynafor™ Industrial. The proven technology of the load cell remains the same.
Featuring an integrated display, the Dynafor™ Industrial series of load indicators provides great value, with an accuracy of 0.3%.
PLEASE EMAIL FOR CURRENT PRICING AND LEAD TIME
Specifications:
- Capacity range from 1t up to 20t
- LCD display of 5-digit of 17.8mm height
- 0.3% accuracy of full scale
- Automatic stop set at 20 min (can be delete in option)
- Multiple integrated functions (ON, Tare, Peak Hold, Units change)
- Units (kg, t, daN, lbs, ton (US))
- IP65
APPLICATIONS
Overhead weighing
Force measurement testing
Towing applications
Safety and lifting applications
| Model Name | W.L.L | Accuracy | Resolution | Weight |
| dynafor™ Industrial 1T | 1 | ±3 | 1 | 0.75 kg |
| dynafor™ Industrial 3.2T | 3.2 | ±9.6 | 2 | 0.93 kg |
| dynafor™ Industrial 6.3T | 6.3 | ±18.9 | 5 | 1.44 kg |
| dynafor™ Industrial 12.5T | 12.5 | ±37.5 | 10 | 3.22 kg |
| dynafor™ Industrial 20T | 20 | ±60 | 20 | 4.95 kg |
