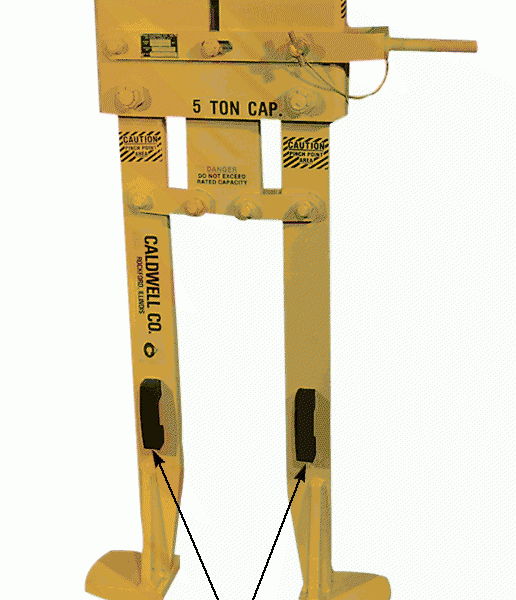

Vertical “Eye” Coil Lifter efficient handling of vertically stacked coils.
| Model Number | Capacity (tons) | Min Coil ID (in.) | Max Coil ID (in.) | Coil Width (in.) | HR (in.) | A (in.) | B (in.) | C (in.) | T (in.) | F (in.) | D (in.) | J (in.) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 83-1/2-20 | 1/2 | 16 | 20 | 20 | 36 | 1-1/4 | 3 | 5 | 5/8 | 4 | 3/4 | 13 | 110 |
| 83-1 1/2-20 | 1-1/2 | 16 | 20 | 24 | 36 | 1-1/2 | 3 | 5 | 5/8 | 4 | 3/4 | 13 | 125 |
| 83-3-20 | 3 | 16 | 20 | 24 | 40 | 1/2 | 3 | 5 | 3/4 | 5 | 3/4 | 13-1/2 | 180 |
| 83-5-20 | 5 | 16 | 20 | 30 | 49 | 2 | 4 | 7 | 1 | 6 | 3/4 | 14-1/4 | 195 |
Vertical "Eye" Coil Grab is efficient handling of vertically stacked coils.
