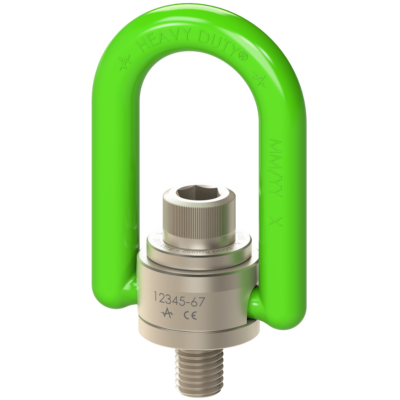

ADB HIGH-VIS HOIST RINGS
- Forged High Strength 4140 Alloy Steel Hoist Ring
- Highly Visible Powder Coated Green Bail
- Corrosion Resistant Plated Body, Fastener, Bushing – Electroless Nickel (AMS-C-26074 Class 1 Grade B)
- 200% Proof Load Tested
- Individually Serialized
- Other Standard and Metric Sizes Available
- Select Sizes from 550-30,000 lbs
- Swivels 360°, Pivots 180°
- Easily disassembled & reassembled for inspection
- Compiles with ASME-B30.26
- 5:1 Design Factor
- Unlike eye bolts, swivel hoist rings maintain full capacity at 0-90 degrees from the bolt axis
| Inch | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part No. | Rated Load (lbs) |
A | B | C | D | E +/- .12 |
F | G | K | L | M | TL* (ft-lbs) |
Weight (lbs) |
| HV33112 | 550 | 0.65 | 2.29 | 0.96 | 0.44 | 0.56 | 3.23 | 1/4-20 | 1.25 | 0.15 | 1.57 | 5 | 0.50 |
| HV33212 | 800 | 0.65 | 2.29 | 0.96 | 0.44 | 0.56 | 3.23 | 5/16-18 | 1.25 | 0.15 | 1.51 | 7 | 0.52 |
| HV33312 | 1000 | 0.65 | 2.29 | 0.96 | 0.44 | 0.56 | 3.23 | 3/8-16 | 1.25 | 0.15 | 1.45 | 12 | 0.56 |
| HV33512 | 2500 | 1 | 3.5 | 1.5 | 0.75 | 0.75 | 5.31 | 1/2-13 | 1.89 | 0.17 | 2.56 | 28 | 1.71 |
| HV33614 | 4000 | 1 | 3.5 | 1.5 | 0.75 | 1 | 5.31 | 5/8-11 | 1.89 | 0.17 | 2.44 | 60 | 1.78 |
| HV33714 | 5000 | 1 | 3.5 | 1.5 | 0.75 | 1 | 5.31 | 3/4-10 | 1.89 | 0.17 | 2.31 | 100 | 1.89 |
| HV33102 | 7000^ | 1.5 | 5.1 | 2.05 | 1 | 1.20 | 7.37 | 3/4-10 | 2.81 | 0.18 | 3.57 | 100 | 7.23 |
| HV33104 | 8000 | 1.5 | 5.1 | 2.05 | 1 | 0.95 | 7.37 | 7/8-9 | 2.81 | 0.18 | 3.32 | 160 | 7.33 |
| HV33105 | 10000 | 1.5 | 5.1 | 2.05 | 1 | 1.45 | 7.37 | 1″-8 | 2.81 | 0.18 | 3.2 | 230 | 7.57 |
| HV33402 | 15000 | 2 | 6.75 | 2.87 | 1.25 | 1.88 | 9.22 | 1 1/4″-7 | 3.88 | 0.18 | 3.74 | 470 | 15.74 |
| HV33424 | 24000 | 2 | 6.75 | 2.87 | 1.25 | 2.63 | 9.22 | 1 1/2″-6 | 3.88 | 0.32 | 3.49 | 800 | 18.1 |
| †HV33427 | 30000 | 2 | 6.75 | 2.87 | 1.25 | 2.96 | 9.22 | 2″-4 1/2 | 3.88 | 0.32 | 3.49 | 1100 | 22.9 |
| Metric | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part No. | Rated Load (kg) |
A | B | C | D | E +/- 3.0 |
F | G | K | L | M | TL* (Nm) |
Weight (kg) |
| HV34212 | 400 | 16.5 | 58.2 | 24.4 | 11.1 | 16 | 82 | M8 x 125 | 31.8 | 4 | 38.5 | 9.5 | 0.24 |
| HV34312 | 450 | 16.5 | 58.2 | 24.4 | 11.1 | 16 | 82 | M10 x 1.5 | 31.8 | 4 | 36.5 | 16 | 0.25 |
| HV34515 | 1050 | 25.4 | 88.9 | 38.1 | 19.1 | 25 | 134.9 | M12 x 1.75 | 48 | 4.4 | 65 | 37 | 0.78 |
| HV34518 | 1500 | 25.4 | 88.9 | 38.1 | 19.1 | 25 | 135.2 | M14 x 2.0 | 48 | 4.4 | 65.3 | 45 | 0.79 |
| HV34614 | 1900 | 25.4 | 88.9 | 38.1 | 19.1 | 25 | 134.9 | M16 x 2.0 | 48 | 4.4 | 62 | 80 | 0.81 |
| HV34714 | 2200 | 25.4 | 88.9 | 38.1 | 19.1 | 25 | 134.6 | M20 x 2.5 | 48 | 4.4 | 58.7 | 135 | 0.86 |
| HV34102 | 4200 | 35.6 | 129.5 | 52.1 | 25.4 | 28 | 187.2 | M24 x 3.0 | 71.4 | 4.6 | 85.7 | 311 | 3.29 |
| HV34105 | 4500 | 35.6 | 129.5 | 52.1 | 25.4 | 38 | 187.2 | M30 x 3.5 | 71.4 | 4.6 | 79.7 | 311 | 3.44 |
