Chafing Gear
Chafing Gear protects expensive mooring and tow lines from damage. Easy to install and remove, Chafing Gear works equally as well with chain and wire rope assemblies.
Chafing Gear is available in three materials: Web, Bulked Nylon or Felt

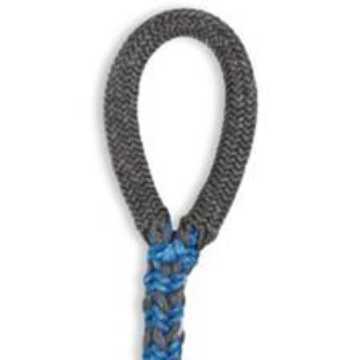

DC GUARD
Made with Dyneema® fiber, Light and flexible, Cut and abrasion resistant, Superior durability, Fully repairable in the field. DC GARD must be removed for inspection and provides maximum protection

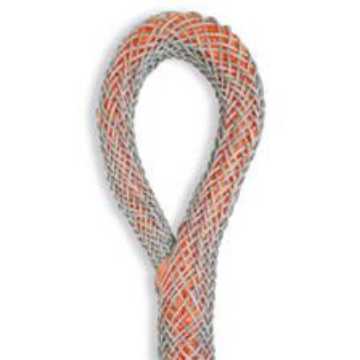

Dynalene
Made with Dyneema® fiber, Light and flexible, Cut and abrasion resistant, Superior durability, Fully repairable in the field. Dynalene allows inspection without removal and provides added protection
Chaffing Gear may be ordered in a single long length for on-site cutting and installation of various lengths as required.
Widely used by US Coast Guard and other military ships.
Chaffing Gear is the most optimal and cost efficient way of protecting your expensive mooring, towing and anchor lines.
Please email for a custom quote
Available in two different designs:
Type “A” brass grommets or
Type “B” hook & loop tape.(velcro)
You must specify:1) Design type:• Type “A” or• Type “B”2) Overall width and lengthAllow extra width to compensate for line swelling. Give extra consideration to the effective width for type “B” chaffing gear
| OverallPad Width(inches) |
Order?Code |
Material |
Style |
Style B |
Rope?Diameter(Inches) |
Rope Circumference(Inches) |
| Hook?andLoop?Width(Inches) |
EffectivePad?Width(Inches) |
| 8 |
CGA-8-W |
Web |
A |
N/A |
N/A |
1-1/2 to 1-3/4 |
4-3/4 to 5-1/2 |
| 8 |
CGA-8-C |
Cordura |
A |
N/A |
N/A |
1-1/2 to 1-3/4 |
4-3/4 to 5-1/2 |
| 8 |
CGA-8-F |
Felt |
A |
N/A |
N/A |
1-1/2 to 1-3/4 |
4-3/4 to 5-1/2 |
| 8 |
CGB-8-W |
Web |
B |
2 |
7 |
1-1/2 to 1-3/4 |
4-3/4 to 5-1/2 |
| 8 |
CGB-8-C |
Cordura |
B |
2 |
7 |
1-1/2 to 1-3/4 |
4-3/4 to 5-1/2 |
| 8 |
CGB-8-F |
Felt |
B |
2 |
7 |
1-1/2 to 1-3/4 |
4-3/4 to 5-1/2 |
| 10 |
CGA-10-W |
Web |
A |
N/A |
N/A |
2 |
6-1/4 |
| 10 |
CGA-10-C |
Cordura |
A |
N/A |
N/A |
2 |
6-1/4 |
| 10 |
CGA-10-F |
Felt |
A |
N/A |
N/A |
2 |
6-1/4 |
| 10 |
CGB-10-W |
Web |
B |
2 |
8 |
2 |
6-1/4 |
| 10 |
CGB-10-C |
Cordura |
B |
2 |
8 |
2 |
6-1/4 |
| 10 |
CGB-10-F |
Felt |
B |
2 |
8 |
2 |
6-1/4 |
| 12 |
CGA-12-W |
Web |
A |
N/A |
N/A |
2-1/2 to 2-3/4 |
7-3/4 to 8-5/8 |
| 12 |
CGA-12-C |
Cordura |
A |
N/A |
N/A |
2-1/2 to 2-3/4 |
7-3/4 to 8-5/8 |
| 12 |
CGA-12-F |
Felt |
A |
N/A |
N/A |
2-1/2 to 2-3/4 |
7-3/4 to 8-5/8 |
| 12 |
CGB-12-W |
Web |
B |
2 |
10 |
2-1/2 to 2-3/4 |
7-3/4 to 8-5/8 |
| 12 |
CGB-12-C |
Cordura |
B |
2 |
10 |
2-1/2 to 2-3/4 |
7-3/4 to 8-5/8 |
| 12 |
CGB-12-F |
Felt |
B |
2 |
10 |
2-1/2 to 2-3/4 |
7-3/4 to 8-5/8 |
| 14 |
CGA-14-W |
Web |
A |
N/A |
N/A |
3 to 3-1/2 |
9-1/2 to 11 |
| 14 |
CGA-14-C |
Cordura |
A |
N/A |
N/A |
3 to 3-1/2 |
9-1/2 to 11 |
| 14 |
CGA-14-F |
Felt |
A |
N/A |
N/A |
3 to 3-1/2 |
9-1/2 to 11 |
| 14 |
CGB-14-W |
Web |
B |
2 |
12 |
3 to 3-1/2 |
9-1/2 to 11 |
| 14 |
CGB-14-C |
Cordura |
B |
2 |
12 |
3 to 3-1/2 |
9-1/2 to 11 |
| 14 |
CGB-14-F |
Felt |
B |
2 |
12 |
3 to 3-1/2 |
9-1/2 to 11 |
| 16 |
CGA-16-W |
Web |
A |
N/A |
N/A |
4 |
12-1/2 |
| 16 |
CGA-16-C |
Cordura |
A |
N/A |
N/A |
4 |
12-1/2 |
| 16 |
CGA-16-F |
Felt |
A |
N/A |
N/A |
4 |
12-1/2 |
| 16 |
CGB-16-W |
Web |
B |
2 |
14 |
4 |
12-1/2 |
| 16 |
CGB-16-C |
Cordura |
B |
2 |
14 |
4 |
12-1/2 |
| 16 |
CGB-16-F |
Felt |
B |
2 |
14 |
4 |
12-1/2 |
