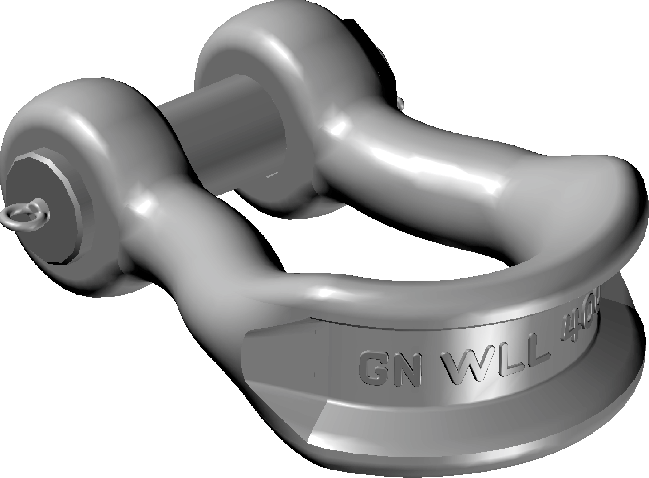

Pewag KSCH Clevis Shackle
Pewag Grade 100 Alloy Steel
Tough Powder Coat Finish
4:1 Design Factor
Proof Tested
Embossed with Grade & Size
Shackle Directly Attaches to the Chain
Allows Direct Connection with Other Components Such as Spreader Beams
|
Part
Number |
Reference
Number |
Working
Load Limit (Lbs.) |
For
Chain Size |
Dimensions
|
Weight
Ea. |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
e
|
e1
|
b
|
a
|
d
|
c
|
d1
|
|||||
|
THKSCH70
|
KSCH70
|
4,300
|
9/32″
|
2.99
|
2.13
|
1.10
|
0.45
|
0.35
|
1.20
|
0.63
|
1.10
|
|
THKSCH80
|
KSCH80
|
5,700
|
5/16″
|
2.97
|
2.13
|
1.10
|
0.45
|
0.39
|
1.20
|
0.63
|
1.10
|
|
THKSCH100
|
KSCH100
|
8,800
|
3/8″
|
4.11
|
2.99
|
1.34
|
0.63
|
0.49
|
1.52
|
0.79
|
2.09
|
|
THKSCH130
|
KSCH130
|
15,000
|
1/2″
|
4.45
|
3.03
|
1.73
|
0.81
|
0.63
|
1.97
|
0.94
|
4.18
|
Made in Europe
